Sunburst chart

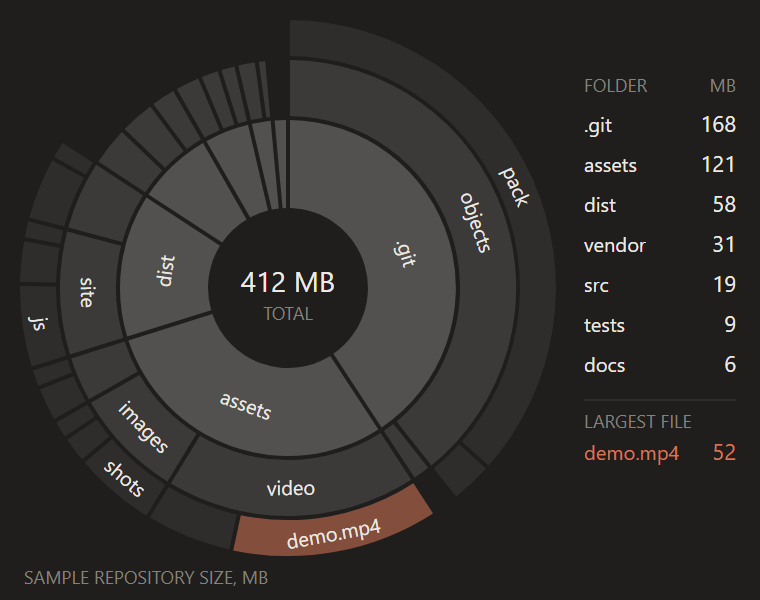

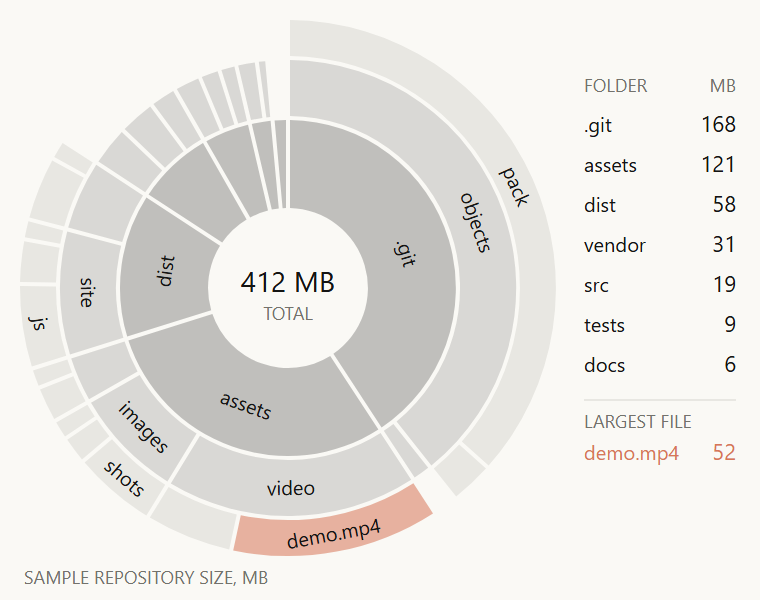

// sunburst: where a 412 MB repository's bytes sit, three folder levels deep, in candle's look. The
// rings come from d3-hierarchy's partition() and the wedges from d3-shape's arc() (both ISC, Mike
// Bostock). Each ring is one depth and takes one quiet ink step: the area step 0.25, then the track
// 0.14 and the faint area 0.08 (0.42 at the centre was tried and the inner ring outshouted candle, as
// streamgraph also found for stage-filling areas); a 2px gap on
// each ring's mid-radius, as donut measures it, splits neighbours and a 2px gap splits the rings. A
// name is drawn only when its whole box fits inside its wedge, so short wedges stay blank rather than
// clipped. The sizes add up: .git 168, assets 121, dist 58, vendor 31, src 19, tests 9, docs 6 = 412 MB.
// The one Claude orange wedge is assets/video/demo.mp4 at 52 MB, a binary that belongs outside git, and the
// list on the right carries every top-level size. Sample data only.
import { hierarchy, partition, arc } from '../vendor/d3.mjs'

const W = 380
const H = 300
const STAGE = '#FAF9F5'
const INK = '#141413'
const MUTED = '#73726C'
const CLAUDE = '#D77757'
const FONT = "'Inter Tight','Segoe UI',system-ui,sans-serif"
const CX = 144
const CY = 144
// Inner and outer radius of each depth; the hole holds the total
const RINGS = [null, [40, 84], [86, 114], [116, 134]]
const STEP = [0, 0.25, 0.14, 0.08]
const GAP = 2 // px between two wedges, along the ring's mid-radius
const LX = 292 // the list's left edge
const ROW = 20
const f = n => n.toFixed(1)

// Sizes in MB on disk; leaves carry size, folders add their children up
const REPO = {
  name: 'repo',
  children: [
    { name: '.git', children: [
      { name: 'objects', children: [{ name: 'pack', size: 151 }, { name: 'loose', size: 11 }] },
      { name: 'refs', size: 6 },
    ] },
    { name: 'assets', children: [
      { name: 'video', children: [{ name: 'demo.mp4', size: 52, accent: true }, { name: 'intro.webm', size: 22 }] },
      { name: 'images', children: [{ name: 'shots', size: 21 }, { name: 'og', size: 7 }, { name: 'icons', size: 5 }] },
      { name: 'fonts', children: [{ name: 'inter', size: 9 }, { name: 'mono', size: 5 }] },
    ] },
    { name: 'dist', children: [
      { name: 'site', children: [{ name: 'js', size: 21 }, { name: 'html', size: 11 }, { name: 'css', size: 5 }] },
      { name: 'worker', children: [{ name: 'bundle', size: 16 }, { name: 'maps', size: 5 }] },
    ] },
    { name: 'vendor', children: [{ name: 'd3', size: 12 }, { name: 'pdf', size: 11 }, { name: 'katex', size: 8 }] },
    { name: 'src', children: [{ name: 'designs', size: 8 }, { name: 'site', size: 6 }, { name: 'mods', size: 5 }] },
    { name: 'tests', children: [{ name: 'fixtures', size: 6 }, { name: 'snaps', size: 3 }] },
    { name: 'docs', size: 6 },
  ],
}

const text = (x, y, s, { size = 9, fill = MUTED, anchor = 'start' } = {}) =>
  `<text x="${f(x)}" y="${f(y)}"${anchor === 'start' ? '' : ` text-anchor="${anchor}"`} font-size="${size}" font-family="${FONT}" fill="${fill}">${s}</text>`

const rmid = d => (RINGS[d.depth][0] + RINGS[d.depth][1]) / 2

// A label of w x h centred on (x, y) relative to the centre and turned by rot fits when its corners
// and edge midpoints all sit inside the wedge with a little air; d3's angles run clockwise from 12
function fits(d, x, y, w, h, rot) {
  const [r0, r1] = RINGS[d.depth]
  const c = Math.cos(rot)
  const s = Math.sin(rot)
  for (const [dx, dy] of [[-1, -1], [0, -1], [1, -1], [-1, 1], [0, 1], [1, 1], [-1, 0], [1, 0]]) {
    const lx = (dx * w) / 2
    const ly = (dy * h) / 2
    const px = x + lx * c - ly * s
    const py = y + lx * s + ly * c
    const r = Math.hypot(px, py)
    let a = Math.atan2(px, -py)
    if (a < 0) a += 2 * Math.PI
    const air = (GAP + 2) / r
    if (r < r0 + 1.5 || r > r1 - 1.5 || a < d.x0 + air || a > d.x1 - air) return false
  }
  return true
}

function draw() {
  const root = hierarchy(REPO).sum(d => d.size || 0).sort((a, b) => b.value - a.value)
  partition().size([2 * Math.PI, 1])(root)
  const wedge = arc()
    .startAngle(d => d.x0)
    .endAngle(d => d.x1)
    .innerRadius(d => RINGS[d.depth][0])
    .outerRadius(d => RINGS[d.depth][1])
    .padAngle(d => GAP / rmid(d))
    .padRadius(rmid)
    .digits(1)
  const parts = [`<rect width="${W}" height="${H}" rx="4" fill="${STAGE}"/>`]
  const nodes = root.descendants().filter(d => d.depth > 0)
  const shapes = []
  const labels = []
  for (const d of nodes) {
    const fill = d.data.accent ? `fill="${CLAUDE}" fill-opacity="0.55"` : `fill="${INK}" fill-opacity="${STEP[d.depth]}"`
    shapes.push(`<path d="${wedge(d)}" ${fill}/>`)
    // Names run along the ring and turn over in the lower half so they never read upside down.
    // About 5.6px a character at 10px with 10% slack; the box is the cap height plus a little.
    const [x, y] = wedge.centroid(d)
    const deg = ((d.x0 + d.x1) / 2) * (180 / Math.PI)
    const rot = deg < 90 || deg > 270 ? deg : deg - 180
    const w = d.data.name.length * 5.6 * 1.1
    if (fits(d, x, y, w, 9, (rot * Math.PI) / 180)) {
      labels.push(`<text transform="translate(${f(x)} ${f(y)}) rotate(${f(rot)})" y="3.5" text-anchor="middle" font-size="10" font-family="${FONT}" fill="${INK}">${d.data.name}</text>`)
    }
  }
  parts.push(`<g transform="translate(${CX} ${CY})">${shapes.join('')}${labels.join('')}</g>`)

  parts.push(text(CX, CY + 2, `${root.value} MB`, { size: 14, fill: INK, anchor: 'middle' }))
  parts.push(text(CX, CY + 16, 'TOTAL', { anchor: 'middle' }))

  // Every top-level size, in ring order from 12 o'clock, then the one file to notice
  const top = root.children
  const y0 = CY - ((top.length - 1) * ROW) / 2 - 22
  parts.push(text(LX, y0 - 16, 'FOLDER'))
  parts.push(text(W - 12, y0 - 16, 'MB', { anchor: 'end' }))
  top.forEach((d, i) => {
    const y = y0 + i * ROW
    parts.push(text(LX, y + 4, d.data.name, { size: 10, fill: INK }))
    parts.push(text(W - 12, y + 4, String(d.value), { size: 11, fill: INK, anchor: 'end' }))
  })
  const big = root.leaves().find(d => d.data.accent)
  const by = y0 + top.length * ROW + 12
  parts.push(`<line x1="${LX}" x2="${W - 12}" y1="${by - 14}" y2="${by - 14}" stroke="${INK}" stroke-opacity="0.08"/>`)
  parts.push(text(LX, by, 'LARGEST FILE'))
  parts.push(text(LX, by + 16, big.data.name, { size: 10, fill: CLAUDE }))
  parts.push(text(W - 12, by + 16, String(big.value), { size: 11, fill: CLAUDE, anchor: 'end' }))

  parts.push(text(12, H - 8, 'SAMPLE REPOSITORY SIZE, MB'))
  return `<svg xmlns="http://www.w3.org/2000/svg" viewBox="0 0 ${W} ${H}" width="${W}" height="${H}">${parts.join('')}</svg>`
}

let source // drawn on first use and kept: the pane loads every design, so none pays at load time
export default {
  id: 'sunburst',
  title: 'Sunburst chart',
  category: 'parts',
  description: 'Repository size three folders deep as rings with even 2px gaps, names only where they fit, the total in the centre and one large file marked.',
  element: ui => ui.Svg({ source: (source ??= draw()), alt: 'Sunburst of a repository by folder size over three levels, total in the centre, sample data', width: W, height: H }),
}
